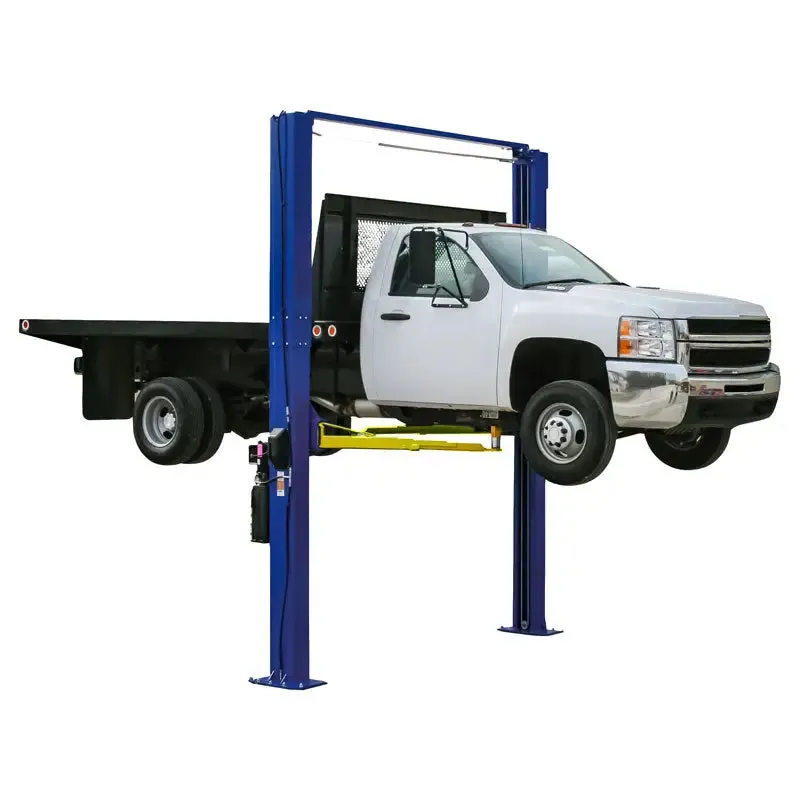

Hofmann Model EELR738A is made for high-volume shops. This model is a 12K Two-Post Symmetric Lift, features long-reaching the front and rear arms, adjustable insert screw lifting pads, padded overhead shut off the bar, and enhancing optional accessories.
Features:
- Heavy-duty, two-stage arms enable heavy-duty, symmetric lifting up to 12,000 lbs
- High-quality rubber door guards provide added security against door damage
- Single point, mechanical lock release allow the technician to disengage both columns simultaneously
- Insert adjustable screw lifting pads with a rubber contact surface for quick and easy vehicle set up
- Premium powder coat finish provides a long-lasting, durable finish
- The padded overhead shut off system prevents vehicle damage from being raised too high
- 13' 10in or 14' 7in adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- ANSI/ALI ALCTV:2011 - Independently tested and validated, ALI certified to the current automotive lift standard
Specs:
Lifting Capacity: 12,000 lbs.Overall Height (Adjustable): 166in / 175in (422-445cm)
Overall width: 137.75in (262cm)
Rise Height (Screw Pads Highest Position): 78.125in (198cm)
Floor to Overhead Shut Off: 159.5in / 168.5in (405-428cm)
Drive-thru Width: 103in (262cm)
Arm Reach: 35.75in to 54.5in (91-139cm)
Lowered Pad Height: 5.25 into 7.25in (13-18cm)
Ceiling Height Required: 167in or 176in (424 or 447cm)
Inside Column Width: 115in (280cm)
Rise Time: 66 Seconds
Max Load per Arm: 3000 lb (1360kg)
Power Requirements: 208-230V 1Ph 60Hz
Optional Voltages are Available*:
EAK0299T45A - 208V 3Ph
EAK0299T46A - 230V 3Ph
